How Much Space Do You Need for a Dental CBCT Machine?

A Practical Guide to Planning Your Dental Imaging Room

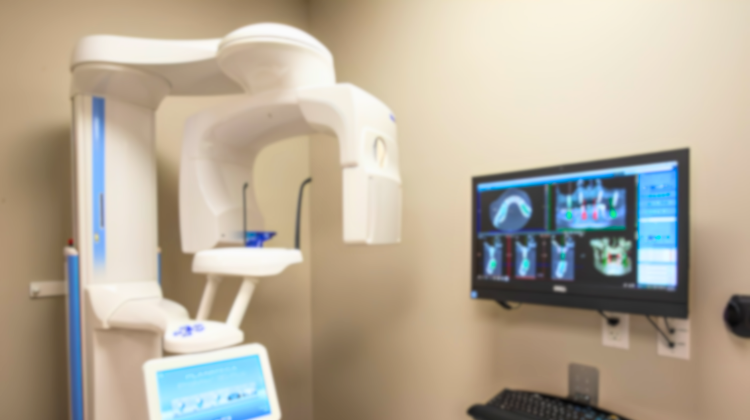

You’ve selected—or started shopping for—the right CBCT machine. Now comes another important question:

Where are you going to put it?

Whether you’re building a dental startup, remodeling an existing practice, expanding into a satellite office, or replacing an older panoramic X-ray, planning the imaging room early can save you from expensive surprises later.

A dental CBCT itself may not look particularly large, but the dimensions of the machine tell only part of the story. You also need adequate room for patient positioning, staff access, computer equipment, electrical and network connections, installation, and any applicable radiation-safety requirements.

At Renew Digital, we help practices install certified pre-owned dental imaging systems from many of the industry’s leading manufacturers. One thing we encourage buyers to understand early is this:

The space required for the machine and the space recommended for comfortable clinical use are not necessarily the same thing.

Here’s what to consider before deciding where your next imaging system will live.

Start With Actual Dimensions vs. Recommended Dimensions

When researching a dental X-ray or CBCT, you may encounter two different types of measurements.

Actual dimensions describe the physical footprint of the equipment itself.

Recommended dimensions describe the amount of room generally needed to install and operate the equipment appropriately.

That distinction matters.

Imagine that a CBCT is physically narrow enough to fit into an available alcove. On paper, it fits.

But can a patient comfortably enter the space?

Can your team position the patient?

Can the gantry move through its full range without obstruction?

Can a technician access the machine for service?

Can the equipment actually be brought through the doorway during installation?

A floor plan that works mathematically doesn't always work clinically.

How Much Room Does a CBCT Typically Need?

There isn't one universal CBCT room size.

Dental imaging systems vary considerably in their physical dimensions and installation requirements. A compact pan/CBCT may have very different space requirements from a large-field CBCT with a cephalometric arm.

Rather than designing around a generic room dimension, we recommend choosing—or at least narrowing down—the equipment first and obtaining the installation specifications for that particular model.

This is especially important during new construction.

Moving a wall on a floor plan is much easier than moving one after the practice is finished.

Panoramic, CBCT, and Pan/Ceph Systems Have Different Needs

The type of imaging system you're considering has a major impact on the room.

Panoramic X-Ray

A traditional panoramic X-ray generally has one of the simpler footprints.

The patient typically stands or sits within the unit while the imaging arm rotates around the head.

For a practice moving from intraoral imaging to its first extraoral panoramic unit, a relatively compact dedicated imaging area may be sufficient depending on the model and local requirements.

Panoramic + CBCT

Adding CBCT capability doesn't necessarily mean the machine becomes dramatically larger.

Many modern systems combine panoramic and 3D imaging within a similar basic platform.

However, you still need to account for patient access, operator workflow, computer placement, service clearance, and the complete movement envelope of the machine.

Pan/Ceph or CBCT + Ceph

This is where space requirements can change significantly.

A cephalometric arm extends horizontally from the primary imaging system, increasing the overall width of the equipment.

For orthodontic practices in particular, this is an important planning consideration.

A room that comfortably accommodates a CBCT without ceph may be too narrow once a cephalometric attachment is added.

If you think you may add ceph later, plan for that possibility before construction.

Don't Design the Room Around the Machine Alone

A common mistake is looking at the manufacturer's width and depth measurements and drawing a box of roughly the same size on the floor plan.

The patient needs space too.

Your imaging room should account for how patients enter, approach the machine, position themselves, and leave.

Think through the actual workflow:

Door → Patient entry → Positioning → Scan → Patient exit

Then ask whether the space works comfortably at every stage.

This becomes especially important when treating children, elderly patients, patients with mobility limitations, or anyone who may need assistance from a team member.

Consider Accessibility Early

Accessibility shouldn't be an afterthought.

Depending on your equipment, office design, jurisdiction, and patient population, additional clearance may be necessary to accommodate patients using wheelchairs or other mobility devices.

That can influence:

• Door width
• Turning space
• Machine positioning
• Control placement
• Patient access
• Room layout

If you're building or remodeling, involve your architect, contractor, equipment provider, and other appropriate professionals early so accessibility requirements can be incorporated into the original design.

Where Does the Computer Go?

The acquisition computer is an essential part of the imaging system, and it needs a home too.

Depending on the equipment and office layout, the workstation may be located inside or outside the imaging room.

You'll need to consider:

• Desk or counter space
• Monitor placement
• Network access
• Power
• Cable routing
• Operator workflow
• Manufacturer requirements

This is another reason simply measuring the CBCT isn't enough.

The complete imaging workflow extends beyond the machine itself.

Think About Electrical Requirements Before Installation Day

A CBCT isn't something you want to plug into whichever outlet happens to be nearby.

Electrical requirements vary by manufacturer and model.

Before construction or installation, confirm the specific requirements for your equipment with the appropriate professionals.

Depending on the system, planning may involve considerations around:

• Outlet placement
• Circuit requirements
• Voltage
• Grounding
• Surge protection
• Acquisition computer power
• Other manufacturer-specific electrical requirements

If you're building a startup, provide your contractor with the equipment specifications as early as possible.

It's much easier to address electrical requirements while the walls are open.

Network and Data Connections Matter Too

Modern dental imaging is highly connected.

Your CBCT may need to communicate with computers throughout the practice as well as other digital systems.

That can include:

• Practice management software
• Imaging workstations
• Servers
• Implant-planning software
• Intraoral scanners
• CAD/CAM systems
• Cloud services
• AI applications

Planning appropriate network connectivity in and around the imaging area can make the installation cleaner and help avoid workarounds later.

Don't assume Wi-Fi alone will necessarily be the best solution for every component of an imaging workflow. Follow the networking requirements for your specific system and software environment.

What About Radiation Shielding?

This is one of the most important areas where practices should avoid relying on a generic rule.

Radiation shielding requirements can vary based on factors including the equipment, room construction, surrounding spaces, expected workload, and applicable state or local regulations.

Requirements may involve considerations such as:

• Wall construction
• Shielding materials
• Doors
• Windows
• Operator location
• Adjacent rooms
• Occupancy of surrounding spaces

In some cases, an existing X-ray room may already be appropriate for a replacement system. In others, modifications may be necessary.

A qualified radiation professional or other appropriate authority should determine the shielding requirements for your particular installation.

Don't assume that because one CBCT worked in a room, another can automatically be installed there without additional review.

Look Up—and Down

Width and depth tend to get most of the attention, but don't forget the third dimension.

Ceiling Height

Depending on the system and mounting configuration, ceiling height may influence installation.

Pay particular attention to soffits, dropped ceilings, overhead cabinetry, lighting, HVAC components, or other structures that could interfere with the machine.

Floor and Mounting

Some imaging systems require specific mounting considerations.

Your installation team should understand the floor construction and mounting requirements before arriving at the practice.

Again, the specific requirements depend on the equipment.

Can You Actually Get the Machine Into the Room?

This sounds obvious until installation day.

The finished imaging room may be large enough for the CBCT—but can the equipment reach it?

Consider the entire path from the building entrance to the final installation location.

Check:

• Exterior doors
• Interior doors
• Hallway width
• Tight corners
• Elevators
• Stairs
• Ceiling clearances
• Existing cabinetry

This is especially important when installing equipment in an existing office where the building wasn't originally designed around that particular system.

A site evaluation can identify these problems before the equipment arrives.

Plan for Service Access

Your CBCT won't simply be installed and never touched again.

Technicians may need future access for preventive maintenance, calibration, computer upgrades, or repairs.

Packing a machine tightly between walls or cabinetry may make future service unnecessarily difficult.

When evaluating the room, don't ask only:

“Can we install it?”

Also ask:

“Can we maintain it?”

A little additional clearance can make a significant difference over the life of the equipment.

Replacing an Existing X-Ray? Don't Assume the New One Will Fit

If you're replacing an existing panoramic X-ray or CBCT, you already have an imaging room.

That's a major advantage.

But don't skip the planning process.

Two machines that perform similar clinical functions can have very different:

• Widths
• Depths
• Heights
• Mounting requirements
• Ceph configurations
• Electrical requirements
• Computer requirements
• Patient-positioning needs

Before ordering replacement equipment, compare its requirements with the actual room—not simply the dimensions of the machine you're removing.

Planning a Startup? Choose Imaging Earlier Than You Think

For startup practices, imaging should be part of the floor-plan conversation early.

Waiting until construction is nearly complete to select a CBCT can limit your options.

Knowing the approximate type of imaging you expect to install allows the design team to plan around:

• Room dimensions
• Electrical
• Networking
• Shielding
• Patient flow
• Accessibility
• Future expansion

Even if you haven't selected the exact model yet, knowing whether you're planning for a pan, CBCT, or CBCT + ceph can help avoid costly redesigns.

This is especially important for orthodontic startups where cephalometric imaging may require considerably more horizontal space.

What About Satellite Offices?

Space planning becomes particularly interesting when opening a second or satellite location.

You may want the same imaging capabilities as your primary practice without having the same amount of space—or the same equipment budget.

That's where careful equipment selection becomes important.

A satellite office may not require the largest or newest imaging system available. A compact or certified pre-owned system that meets your clinical needs may allow you to build a highly capable imaging workflow without overbuilding the location.

Start with the procedures you'll actually perform there, then select the equipment and room accordingly.

A Simple CBCT Room Planning Checklist

Before finalizing your imaging room, make sure you've considered:

• Exact equipment model and configuration
• Actual machine dimensions
• Manufacturer-recommended clearances
• Patient entry and positioning
• Accessibility
• Cephalometric arm, if applicable
• Acquisition computer location
• Electrical requirements
• Network connections
• Radiation shielding evaluation
• Ceiling height
• Floor/mounting requirements
• Installation pathway
• Future service access
• Potential future upgrades

And most importantly:

Have the installation requirements reviewed before construction is finalized or equipment is ordered.

The Best Room Size Is the One Designed Around Your Equipment

Dentists frequently ask us for a single recommended room size for a CBCT.

We understand why.

Unfortunately, there isn't one number that works for every machine or every practice.

A better approach is to work backward:

Clinical needs → Equipment → Manufacturer requirements → Room design

Not:

Available room → Hope the CBCT fits

That small change in planning can save significant time, money, and frustration.

Final Thoughts

Your dental imaging room doesn't necessarily need to be huge.

It needs to be planned correctly.

The physical footprint of the machine is only the beginning. Patient access, cephalometric attachments, computer placement, electrical and network infrastructure, shielding, installation access, and future service all contribute to how much space you actually need.

If you're building a startup or remodeling, involve your imaging provider early.

If you're replacing an existing system, verify the new machine's requirements before assuming it will fit.

And if you're still deciding which CBCT to purchase, don't overlook room size as part of the comparison.

Sometimes the best imaging system isn't simply the one with the right field of view or image quality.

It's the one that also fits your practice.
